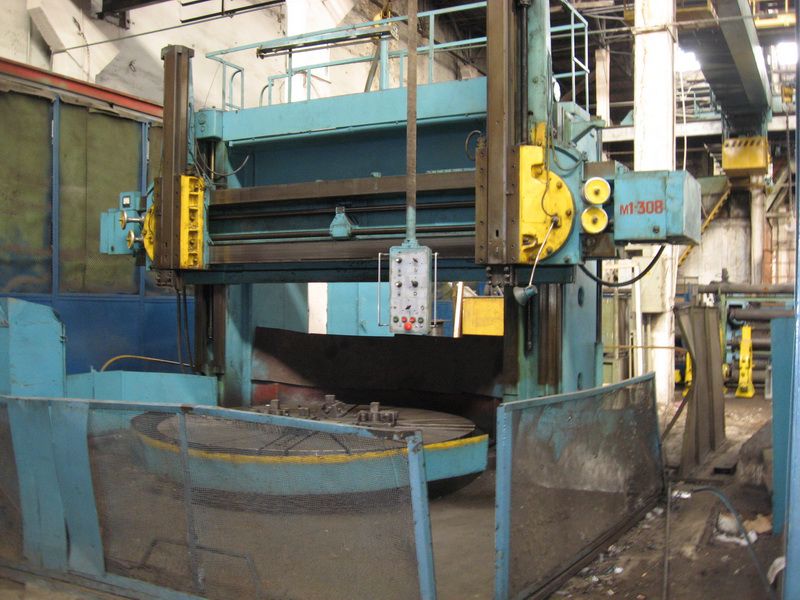

VTL 1L532, Sedin
Other photos:
Category: VTL
Year of production: 1984
Manufacturer: SEDIN, Russia

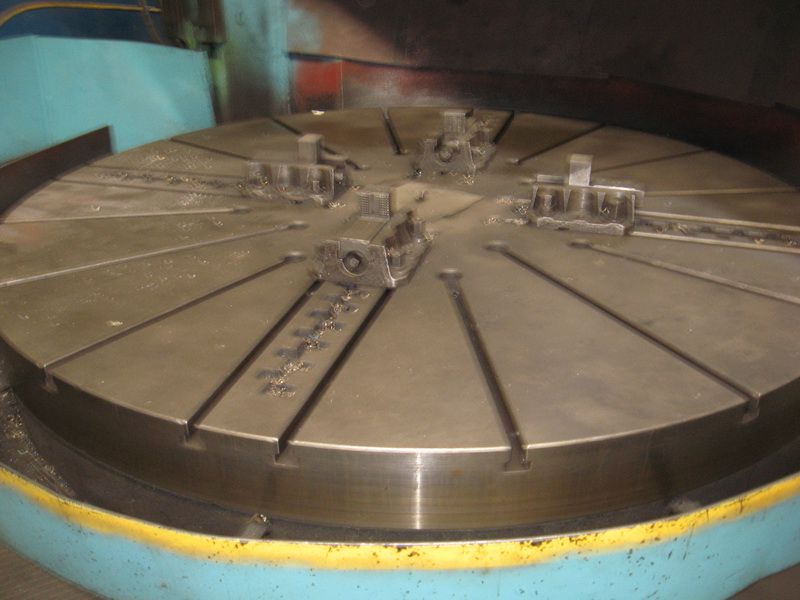

| Table diameter | 2800 mm |
| Swing | 3150 mm |
| Max. workpiece height | 1600 mm |
| Max table loading | 16 t |
| Max. ram travel | 1200 mm |
| Max. horizontal travel of carriage | 1720 mm |
| Carriage inclination angle | 30 dgr |
| Carriage feeds number | 16 |
| Carriages feeds range | 0.09 - 16 mm/rev |
| Feeds of traversal beam | 360 mm/min |
| Max. distance between ram's axis | 360 mm |
| Distance between table and ram | 0 - 1780 mm |
| Distance between table and lower surface of traversal beam | 400 - 1640 mm |
| Revolution speeds number | 18 |
| Table speeds | 1.25-63 rpm |
| Main engine power | 55 kW |
| Dimensions | 5485x6120x4910 mm |
| Total weight | 41420 kg |
