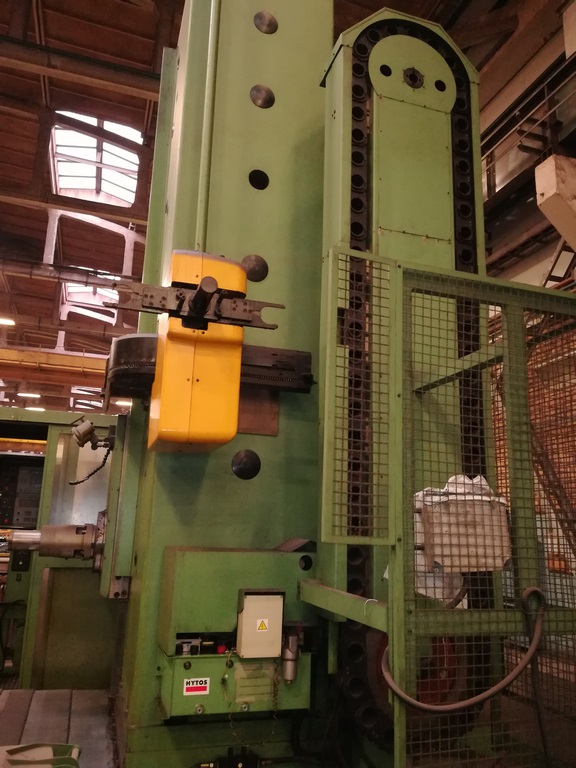

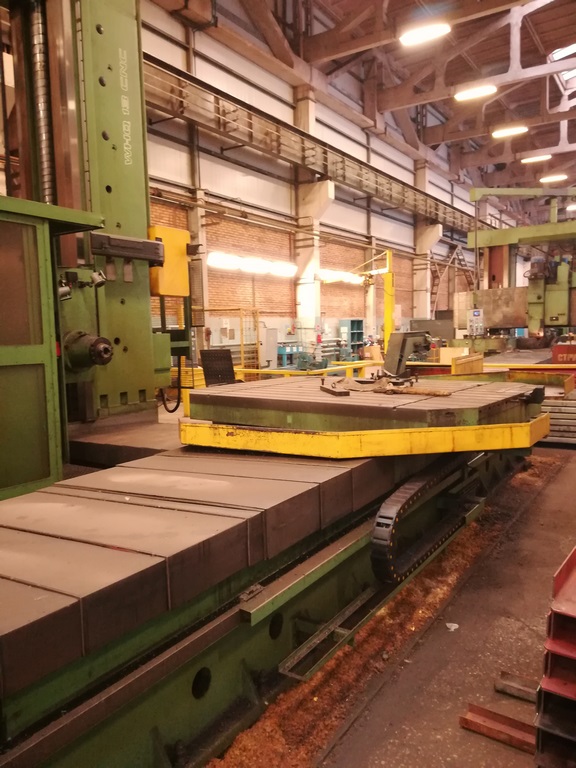

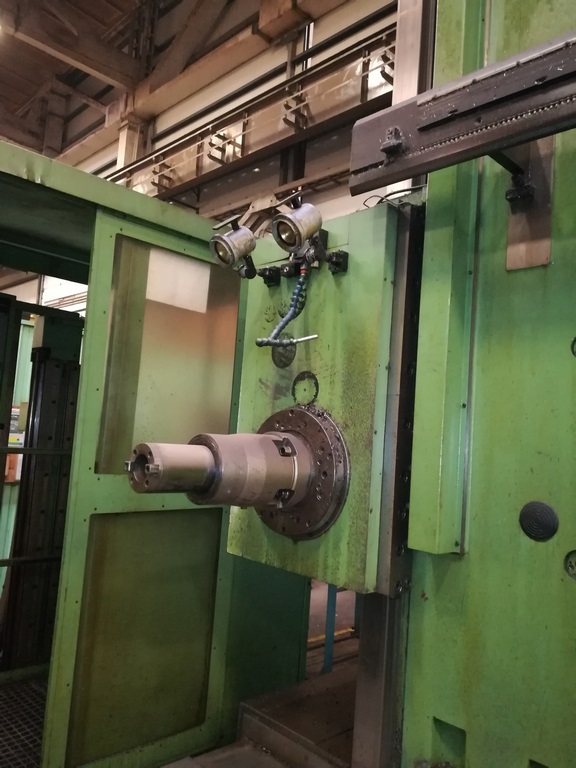

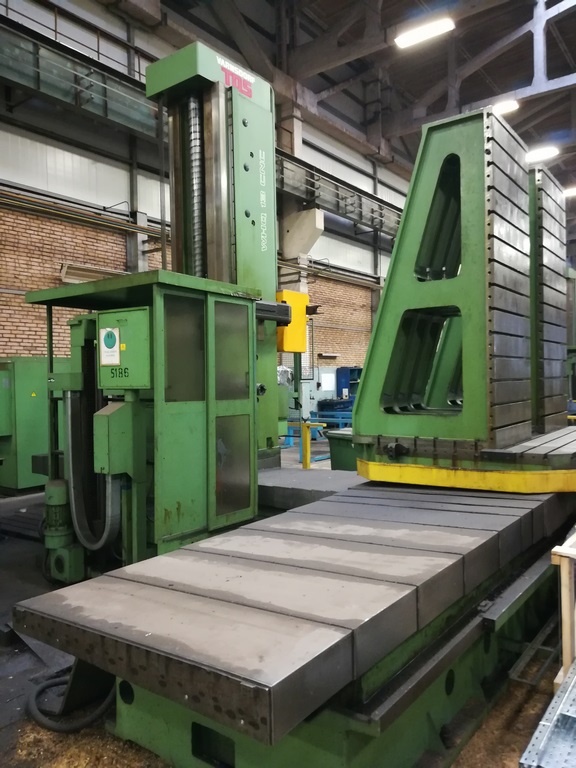

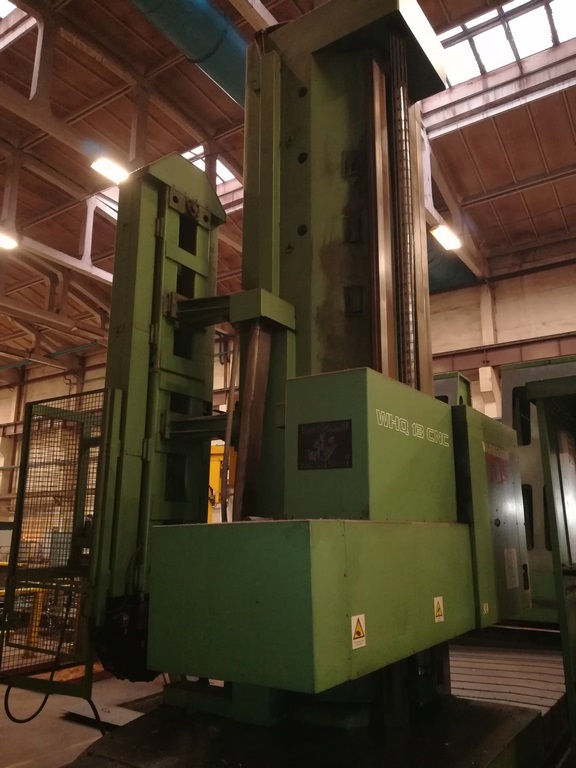

Horizontal boring TOS VARNSDORF WHQ 13 CNC
Other photos:
Category: Boring
Manufacturer: TOS VARNSDORF
| Spindle Diameter | 130 mm |
| Spindle Taper | ISO 50 |
| Spindle Speeds | 3,000 rpm |
| Y Axis Vertical Travel | 2,500 mm |
| X Axis Horizontal Travel | 4,000 mm |
| W Axis Spindle Travel | 800 mm |
| Main Motor | 37 kW |
| Rotary Table (Full CNC Built In) Size | 1,800 x 2,200 mm |
| Feed Rate X, Y, Z, W Axis | 4 - 5,000 mm/min |
| Rapid Traverse X Axis | 8,000 mm/min |
| Machine Dimensions | 7,750 x 5,400 x 6,840 mm |
